High Speed Sandwich Wall Panel Manufacturing Equipment 380V 50Hz Voltage

Brand Name : SINOMA/ CNBM

Model Number : SINOMA-EPS

Certification : CE, ISO

Place of Origin : Wuhan, Hubei

MOQ : 1 Production line

Price : 1000000 USD

Supply Ability : 4 Lines per year

Delivery Time : 4 Months

Packaging Details : Container

Type : Full- automatic

Delivery : 45 days after receiving advanced payment

voltage : 380V 50Hz

Automation degree : Full-automatic and semi-automatic

Machine material : High quality carbon steel

Control System : PLC with touch screen

Capacity : 300,000-500,000 sqm per year

Contact Now

Fiber Cement Board Machine / Sandwich Panel Making Machine / Sandwich Panel Production Line

Product Description

Capacity

30,000sqm~500,000sqm per year

Fuel

Gas ,diesel oil ,coal

Thickness

40-200mm thickness. Or customize the size you like

Voltage

380V

Power(W)

25.64W

Length

2440~3050mm

Width

610mm/1200mm

Raw material

Cement; EPS; fly ash; calacium silicate board/mgo board, etc

Control System

PLC with touch screen

Automation degree

full/semi/simple automatic

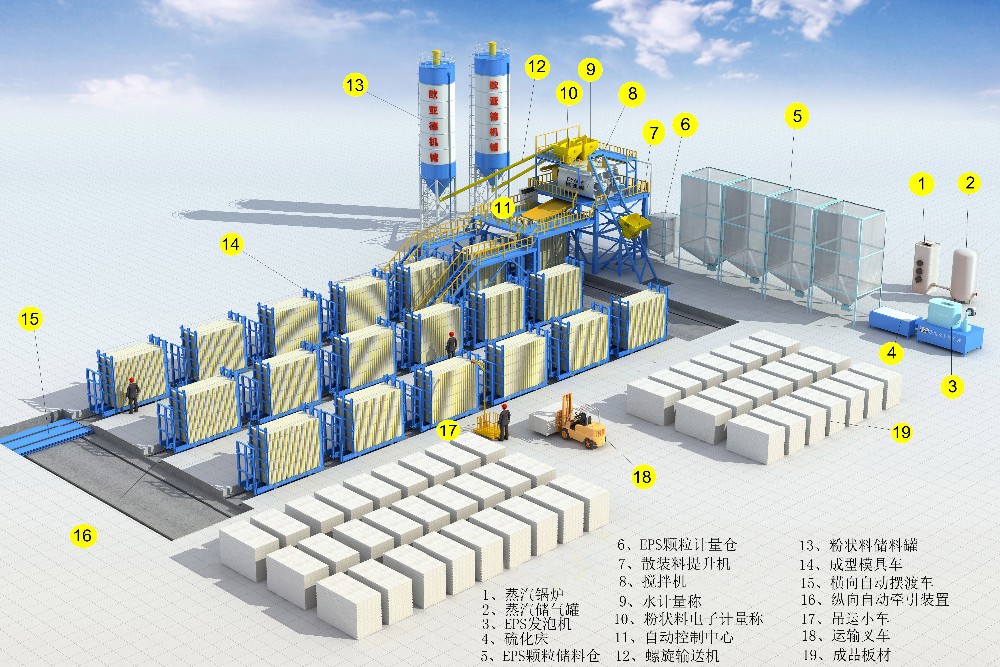

High Speed Sandwich Wall Panel Manufacturing Equipment 380V 50Hz Voltage

1

steam boiler

2

steam gas tank

3

EPS faoming machine

4

fluidized bed

5

EPS grain storage silo

6

EPS particle counting chamber

7

Bulk material lifting machine

8

The mixer

9

water metering scale

10

Electronic metering said the powder material

11

Automatic control center

12

screw conveyor

13

powder maetrial storage tank

14

mould car

15

horizontal automatic car ferry

16

longitudinal automatic traction device

17

lifting trolley

18

transport forklift

19

the finished plate

Detailed Images

High Speed Sandwich Wall Panel Manufacturing Equipment 380V 50Hz Voltage

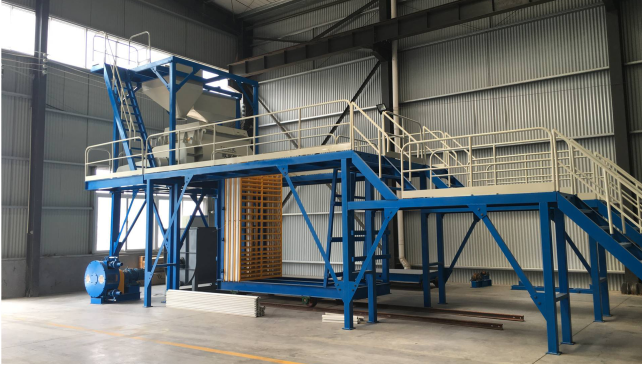

Item name :Full automatic mixing systerm platform

Features: Measuring materials. Weighing system uses the gravity center of the pressure sensor structure measuring scale design, measuring scale adopts anti vibration and abrasion-proof , the accuracy of measurement is always guaranteed in construction process.

Item name :The Mixer

Feature:We adopt double-shaft mixer, which has compact structure, beautiful appearance, stable running, convenient operation, high production efficiency.

High Speed Sandwich Wall Panel Manufacturing Equipment 380V 50Hz Voltage

Item Name :Pumping system

Feature : it is used for driving the slurry into the mold car , the unique anvantage is avoiding the air holes.


High Speed Sandwich Wall Panel Manufacturing Equipment 380V 50Hz Voltage

High Speed Sandwich Wall Panel Manufacturing Equipment 380V 50Hz Voltage

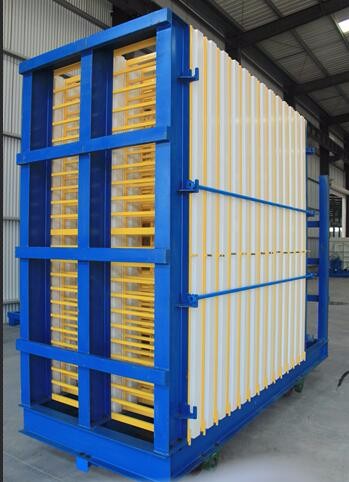

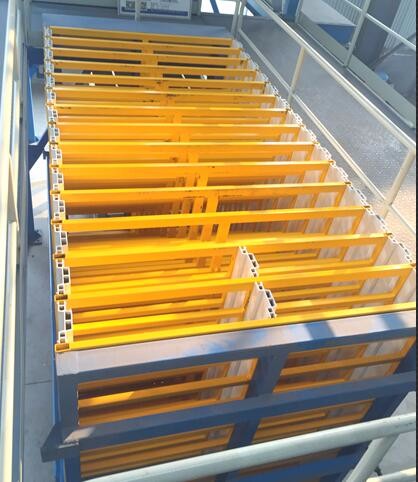

Item name :Semi-automatic mould car

Feature :Precision accuracy, rigor, convenient installation, plate shape from the stability, not deformation, not cracking

High Speed Sandwich Wall Panel Manufacturing Equipment 380V 50Hz Voltage

High Speed Sandwich Wall Panel Manufacturing Equipment 380V 50Hz Voltage

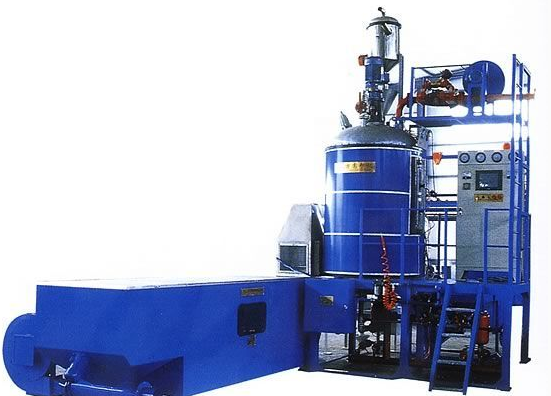

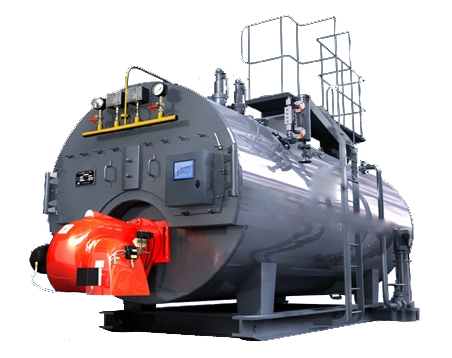

Item name :Boiler and EPS foaming machine

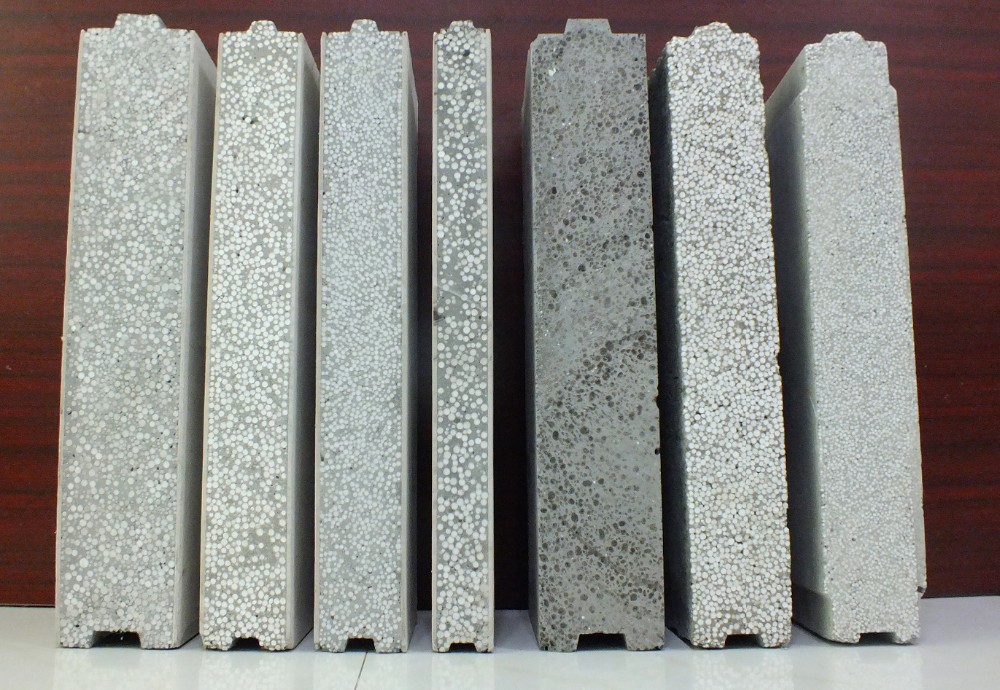

Finished products

High Speed Sandwich Wall Panel Manufacturing Equipment 380V 50Hz Voltage

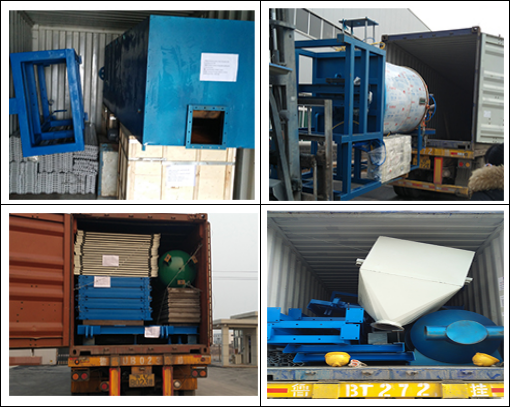

Packing & Delivery

High Speed Sandwich Wall Panel Manufacturing Equipment 380V 50Hz Voltage

Packaging

1.

First use plastic film to wrap and cover the machine

2.

Pack small parts in plywood box

3.

marked with required label or shipping mark

4

Use steel wire rope to fix the container ,so as to avoid to damage because of moving
